Long Ran Hybrid MPPT Solar Inverter 3.00KW 24V
Product specificationModel: Xanadu 3024 -ProRated Power: 3000VA/3000WParallel Capability: NOOperation Without Battery: YesLithium Battery Communication: Yes (optional)Dual Output: Yes (optional)InputVoltage: 220/230/240VACSelectable Voltage Range: 170~264Vac(for personal Computer) 90~280Vac (for home appliances)Frequency Range: 50Hz/60Hz(Auto Sensing)OutputAC Voltage Regulation(Batt.Mode): (220VAC~240VAC)±5%Surge Power: 6000VAWave Form: Pure Sine WaveInverter Efficency(Peak): 93.5%Transfer Time: 10ms(typcial)BATTERYNormal Voltage: 24VdcFloating Charge Voltage (settable): 27.6VdcOvercharge Protection: 30VdcSOLAR CHARGER & AC CHARGEMax PV Array Open Circuit Voltage: 500VdcPV Array Voltage Range: MPPT 120-430VdcNum of MPP Trackers: 1Maximum PV Input Power: 4000WMaximum PV Input Current: 12AMaximum Solar Charge Current: 120AMaximum AC Charge Current: 120AMaximum Charge Current: 120ACOMMUNICATIONInterface: USB/R485/CAN/DRY CONTACTWifi Monitoring: Yes(optional)MECHANICAL SPECIFICATIONSMachine Dimensions(HW*D)(mm): 310*467*116Package Dimensions(HW*D)(mm): 570*375*200Net Weight(kg): 9.25
Long Ran Hybrid MPPT Solar Inverter 3.00KW 24V
price
Details:
- Warranty2 Years & 4 Years Services
Product specification
Model: Xanadu 3024 -Pro
Rated Power: 3000VA/3000W
Parallel Capability: NO
Operation Without Battery: Yes
Lithium Battery Communication: Yes (optional)
Dual Output: Yes (optional)
Input
Voltage: 220/230/240VAC
Selectable Voltage Range: 170~264Vac(for personal Computer) 90~280Vac (for home appliances)
Frequency Range: 50Hz/60Hz(Auto Sensing)
Output
AC Voltage Regulation(Batt.Mode): (220VAC~240VAC)±5%
Surge Power: 6000VA
Wave Form: Pure Sine Wave
Inverter Efficency(Peak): 93.5%
Transfer Time: 10ms(typcial)
BATTERY
Normal Voltage: 24Vdc
Floating Charge Voltage (settable): 27.6Vdc
Overcharge Protection: 30Vdc
SOLAR CHARGER & AC CHARGE
Max PV Array Open Circuit Voltage: 500Vdc
PV Array Voltage Range: MPPT 120-430Vdc
Num of MPP Trackers: 1
Maximum PV Input Power: 4000W
Maximum PV Input Current: 12A
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A
COMMUNICATION

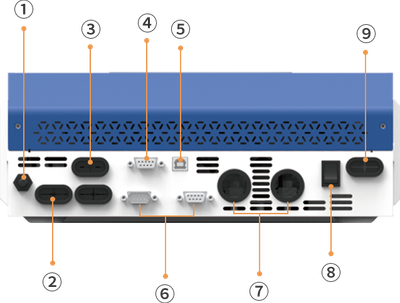

Interface: USB/R485/CAN/DRY CONTACT
Wifi Monitoring: Yes(optional)
MECHANICAL SPECIFICATIONS

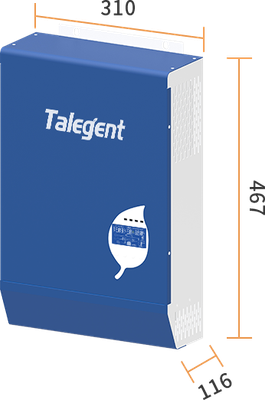

Machine Dimensions(HW*D)(mm): 310*467*116
Package Dimensions(HW*D)(mm): 570*375*200
Net Weight(kg): 9.25
