Liwatt Lithium ion LiFePo4 12.8V 100AH IPS/UPS Battery

IntroductionLW12160E (Li-WATT 12.8V 160Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.ApplicationHouseholdSolar LightIPS & UPSFishing boatInverterFeature of LiFePO4 BatteryLonger Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownershipLighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacitySuperior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.Wider Temperature Range: -10℃~60℃Functions of BMSOver charge detection functionOver discharge detection functionOver current detection functionTemperature protection functionShort circuit detection functionBalance functionTechnical Specification of BatterySpecificationModelLW12160EElectrical Characteristics Nominal Voltage12.8V Nominal Capacity160AhEnergy2048WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage14.2~14.6VMax. Charge Current100ACharge Mode0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage9.5~10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm406*173*236Max. Weight20kgMin. Gravimetric Specific energy102Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed

•
•
•

•
•
•

Details:

• Warranty
  4 Years Warranty

Introduction

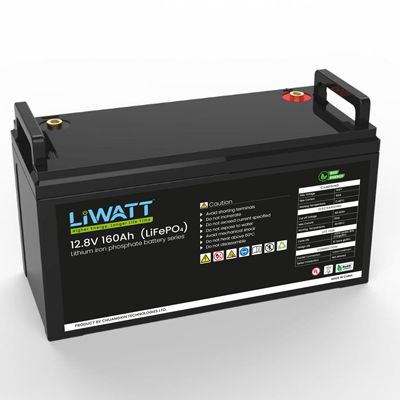

LW12160E (Li-WATT 12.8V 160Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.
Application

•

  Household

• Solar Light

• IPS & UPS

• Fishing boat

• Inverter

Feature of LiFePO4 Battery

•
  Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership

• Lighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.

• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity

• Superior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.

• Wider Temperature Range: -10℃~60℃

Functions of BMS

•
  Over charge detection function

• Over discharge detection function

• Over current detection function

• Temperature protection function

• Short circuit detection function

• Balance function

Technical Specification of Battery

SpecificationModelLW12160EElectrical Characteristics Nominal Voltage12.8V Nominal Capacity160AhEnergy2048WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage14.2~14.6VMax. Charge Current100ACharge Mode0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage9.5~10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm406*173*236Max. Weight20kgMin. Gravimetric Specific energy102Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed

Liwatt Lithium ion LiFePo4 12.8V 100AH IPS/UPS Battery

price

26,000 BDT32,500 BDTSave 6,500 BDT

sold_units 2

1

add_to_cart

buy_now

Details:

• Warranty
  4 Years Warranty

Introduction

LW12160E (Li-WATT 12.8V 160Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.
Application

•

  Household

• Solar Light

• IPS & UPS

• Fishing boat

• Inverter

Feature of LiFePO4 Battery

•
  Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership

• Lighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.

• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity

• Superior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.

• Wider Temperature Range: -10℃~60℃

Functions of BMS

•
  Over charge detection function

• Over discharge detection function

• Over current detection function

• Temperature protection function

• Short circuit detection function

• Balance function

Technical Specification of Battery

SpecificationModelLW12160EElectrical Characteristics Nominal Voltage12.8V Nominal Capacity160AhEnergy2048WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage14.2~14.6VMax. Charge Current100ACharge Mode0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage9.5~10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm406*173*236Max. Weight20kgMin. Gravimetric Specific energy102Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed
