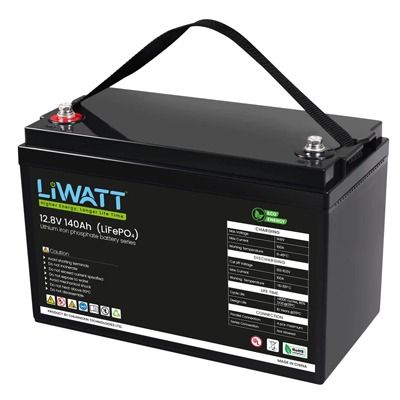

Liwatt Lithium ion LiFePo4 12.8V 140AH IPS/UPS Battery

LW12140E -Li-WATT 12.8V-140Ah IntroductionLW12140E (Li-WATT 12.8V-140Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.ApplicationHouseholdSolar LightIPS & UPSFishing boatInverterFeature of LiFePO4 BatteryLonger Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownershipLighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacitySuperior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.Wider Temperature Range: -10℃~60℃Functions of BMSOver charge detection functionOver discharge detection functionOver current detection functionTemperature protection functionShort circuit detection functionBalance functionTechnical Specification of BatterySpecificationModelLW12140EElectrical Characteristics Nominal Voltage12.8VNominal Capacity140AhEnergy1792WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage14.2~14.6VMax. Charge Current100ACharge Mode0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage9.5~10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm330*172*215Max. Weight16kgMin. Gravimetric Specific energy 112Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed

•
•
•
•

•
•
•
•

Details:

• Warranty
  4 Years Warranty

LW12140E -Li-WATT 12.8V-140Ah Introduction

LW12140E (Li-WATT 12.8V-140Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.

Application

1. Household
2. Solar Light
3. IPS & UPS
4. Fishing boat
5. Inverter

Feature of LiFePO4 Battery

1. Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership
2. Lighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.
3. Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity
4. Superior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.
5. Wider Temperature Range: -10℃~60℃

Functions of BMS

1. Over charge detection function
2. Over discharge detection function
3. Over current detection function
4. Temperature protection function
5. Short circuit detection function
6. Balance function

Technical Specification of Battery

SpecificationModelLW12140EElectrical Characteristics Nominal Voltage12.8VNominal Capacity140AhEnergy1792WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage14.2~14.6VMax. Charge Current100ACharge Mode0.2C to 14.6V, then 14.6V charge current to 0.02C (CC/CV)Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage9.5~10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm330*172*215Max. Weight16kgMin. Gravimetric Specific energy 112Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed

Liwatt Lithium ion LiFePo4 12.8V 140AH IPS/UPS Battery

Out of stock

price

34,000 BDT1ps40,500 BDTSave 6,500 BDT

sold_units 2

1

add_to_cart

buy_now
