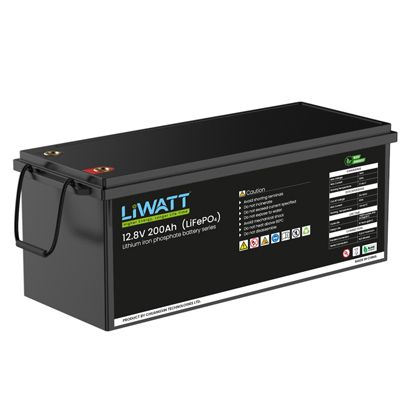

Liwatt Lithium ion LiFePo4 12.8V 200AH IPS/UPS Battery

LW12200E-LiWATT 12.8V-200Ah IntroductionLW12200E (Li-WATT 12.8V-200Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.ApplicationFor HouseholdSolar lightRVFishing boatLi-WATT 12.8V-200AhFeature of LiFePO4 BatteryLonger Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownershipLighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacitySuperior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.Wider Temperature Range: -10℃~60℃Functions of BMSOver charge detection functionOver discharge detection functionOver current detection functionTemperature protection functionShort circuit detection functionBalance functionTechnical Specification of BatterySpecificationModelLW12200 Electrical Characteristics Nominal Voltage12.8VNominal Capacity200AhEnergy2560WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles, 80% DOD@25℃10 years @25℃≤20mΩ (without BMS)Self-Discharge (30 days)≤5%，@25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C≥96% @ 0.5CChargeCharge Voltage14.2-14.6VCharge Mode0.2C to 14.6V, then 14.6V charge currentto 0.02C (CC/CV)Max. Charge Current100ADischargeMax. Continuous Discharge Current100ADischarge Cut-off Voltage9.5-10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalsM8Dimensions483*170*240mmMax. Weight23kgMin. Gravimetric Specific energy110Wh/kg Other Communication port Not available Parallel in maximum4pcsSerial in maximum Not available

•
•
•
•

•
•
•
•

Details:

• Warranty
  4 Years Warranty

LW12200E-LiWATT 12.8V-200Ah Introduction

LW12200E (Li-WATT 12.8V-200Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.
Application

•

  For
  Household

•
  Solar light

•
  RV

•
  Fishing boat

Li-WATT 12.8V-200Ah

Feature of LiFePO4 Battery

•

  Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership

•
  Lighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.

•
  Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity

•
  Superior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.

•
  Wider Temperature Range: -10℃~60℃

Functions of BMS

•

  Over charge detection function

•
  Over discharge detection function

•
  Over current detection function

•
  Temperature protection function

•
  Short circuit detection function

•
  Balance function

Technical Specification of Battery

SpecificationModelLW12200 Electrical Characteristics Nominal Voltage12.8VNominal Capacity200AhEnergy2560WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles, 80% DOD@25℃10 years @25℃≤20mΩ (without BMS)Self-Discharge (30 days)≤5%，@25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C≥96% @ 0.5CChargeCharge Voltage14.2-14.6VCharge Mode0.2C to 14.6V, then 14.6V charge currentto 0.02C (CC/CV)Max. Charge Current100ADischargeMax. Continuous Discharge Current100ADischarge Cut-off Voltage9.5-10.5VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalsM8Dimensions483*170*240mmMax. Weight23kgMin. Gravimetric Specific energy110Wh/kg Other Communication port Not available Parallel in maximum4pcsSerial in maximum Not available
