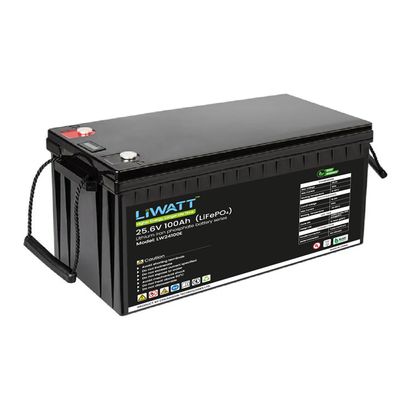

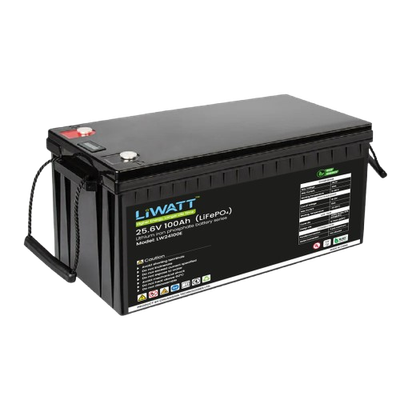

Liwatt Lithium ion LiFePo4 25.6V 100AH IPS/UPS Batter

বিঃ দ্রঃ - ক্যাশ অন ডেলিভারির ক্ষেত্রে কুরিয়ার খরচ অগ্রিম পেমেন্ট করতে হবে.LW24100E Li-WATT 25.6V 100Ah IntroductionLW24100E (Li-WATT 25.6V-100Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.ApplicationHouseholdSolar LightIPS & UPSFishing boatInverterLi-WATT 25.6V-100AhFeature of LiFePO4 BatteryLonger Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownershipLighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacitySuperior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.Wider Temperature Range: -10℃~60℃Functions of BMSOver charge detection functionOver discharge detection functionOver current detection functionTemperature protection functionShort circuit detection functionBalance functionTechnical Specification of BatterySpecificationModelLW24100EElectrical Characteristics Nominal Voltage25.6VNominal Capacity100AhEnergy2560WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage28.4~29.2VMax. Charge Current100ACharge Mode CC/CV Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage19~21VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm483*170*240Max. Weight21kgMin. Gravimetric Specific energy122Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed

•
•
•
•
•
•

•
•
•
•
•
•

Details:

• Warranty
  4 Years Warranty

বিঃ দ্রঃ - ক্যাশ অন ডেলিভারির ক্ষেত্রে কুরিয়ার খরচ অগ্রিম পেমেন্ট করতে হবে.

LW24100E Li-WATT 25.6V 100Ah Introduction

LW24100E (Li-WATT 25.6V-100Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.Application

•
  Household

• Solar Light

• IPS & UPS

• Fishing boat

• Inverter

Li-WATT 25.6V-100Ah

Feature of LiFePO4 Battery

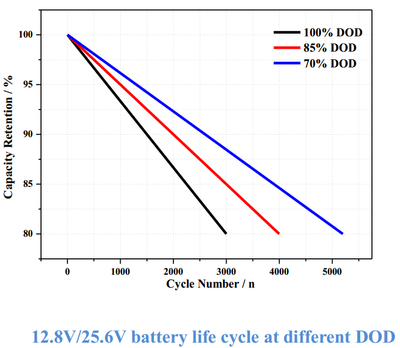

• Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership

• Lighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.

• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity

• Superior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.

• Wider Temperature Range: -10℃~60℃

Functions of BMS

• Over charge detection function

• Over discharge detection function

• Over current detection function

• Temperature protection function

• Short circuit detection function

• Balance function

Technical Specification of Battery

SpecificationModelLW24100EElectrical Characteristics Nominal Voltage25.6VNominal Capacity100AhEnergy2560WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage28.4~29.2VMax. Charge Current100ACharge Mode CC/CV Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage19~21VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm483*170*240Max. Weight21kgMin. Gravimetric Specific energy122Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed

Liwatt Lithium ion LiFePo4 25.6V 100AH IPS/UPS Batter

price

48,500 BDT70,500 BDTSave 22,000 BDT

sold_units 1

1

add_to_cart

buy_now

Details:

• Warranty
  4 Years Warranty

বিঃ দ্রঃ - ক্যাশ অন ডেলিভারির ক্ষেত্রে কুরিয়ার খরচ অগ্রিম পেমেন্ট করতে হবে.

LW24100E Li-WATT 25.6V 100Ah Introduction

LW24100E (Li-WATT 25.6V-100Ah) is a communication lithium battery based on innovative Li-ion technology. It has advanced features: a long lifespan, a wide range of charging voltage, fast charging etc.Application

•
  Household

• Solar Light

• IPS & UPS

• Fishing boat

• Inverter

Li-WATT 25.6V-100Ah

Feature of LiFePO4 Battery

• Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership

• Lighter Weight: The weight is approximately 40% to 50% less than that of a lead acid battery. When compared to lead acid batteries, it can conserve space.

• Higher Power: Delivers twice power of lead acid battery, even high discharge rate, while maintain high energy capacity

• Superior Safety: The chemistry of lithium iron phosphate avoids the possibility of explosion or combustion caused by heavy impact, overcharging, or short circuit circumstances.

• Wider Temperature Range: -10℃~60℃

Functions of BMS

• Over charge detection function

• Over discharge detection function

• Over current detection function

• Temperature protection function

• Short circuit detection function

• Balance function

Technical Specification of Battery

SpecificationModelLW24100EElectrical Characteristics Nominal Voltage25.6VNominal Capacity100AhEnergy2560WhInternal Resistance≤20mΩ (without BMS)Cycle Life≥4000 cycles @85%DOD@25℃Design Life12 years @25℃Self-Discharge (30 days)≤5% @25℃Efficiency of Charge≥98%Efficiency of Discharge≥100% @ 0.2C & ≥96% @ 1CChargeCharge Voltage28.4~29.2VMax. Charge Current100ACharge Mode CC/CV Discharge Max. Continuous Discharge Current100ADischarge Cut-off Voltage19~21VEnvironmentalCharge Temperature Range0℃~45℃Discharge Temperature Range-10℃~55℃Optimum Operation Temperature10℃~35℃Storage Temperature-10℃~35℃, ≤85% Relative Humidity Water Dust ResistanceIP65MechanicalCaseABSTerminalM6Dimensions(L*W*H) mm483*170*240Max. Weight21kgMin. Gravimetric Specific energy122Wh/kg Others Communication port Not available Parallel in maximum4 pcs Series in maximum Not allowed
