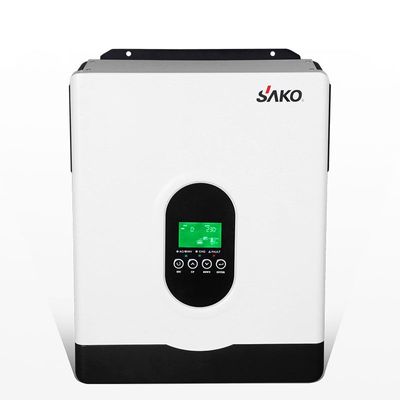

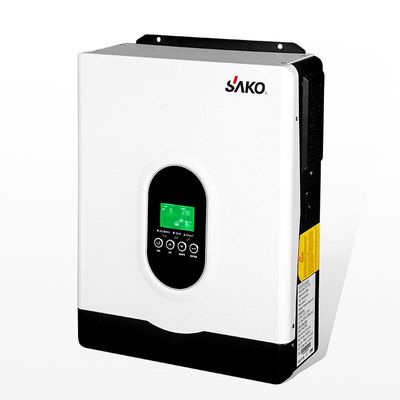

Sako Off-Grid Hybrid MPPT Solar Inverter 1.2KVA 12v

Features:With 80A MPPT Solar Charge Controller InsideCan Work With or Without BatteryWide PV Input Range 120-450VEfficiently Work With or Without BatteryWith Anti Dust KitWith Touch Button on the LCD DisplayTechnical Parameters.Model no. ESS-1.2KVA Storage information1 Normal Battery Voltage(Vdc) 25.6VDC2 Low Battery Warning Voltage SOC 20%3 Low Battery Protection Voltage SOC 20%4 Over Protection Voltage 29.2VDC5 Battery type LiFePO46 Cell brand CATL7 The capacity of each cell 3.2V 20AH8 Cell QTY 24PCS9 Normal Capacity (25℃ 0.2C) (WH) 1536wh10 Cells Cycle life (25℃, 0.2C, 80%SOH）≥2000cycles&25℃≥1500cycles&45℃Ⅱ Grid input Parameters1 Max. Power Feed to Grid 600W Max.2 AC Input Current 0-40A(Adjustable)3 AC Input Range 90-265VAC4 AC Input Frequency Range 50HZ ±3HZ5 THDI 3%6 Rectification efficiency 90% Max.Ⅲ Off Grid Output Parameters1 Continuous AC Output Power 1000W2 Output peak power（W）If the load ≧1100W, shut off after 1 minute;If the load ≧2000W, shut off after 200ms3 Ac Output Voltage 220VAC4 Power factor 1.05 Output waveform Pure sine wave6 Output frequency 50HZ7 Inverter Efficiency90% max.Ⅳ Solar charge controller data1 Type MPPT2 Rated battery voltage 25.2V173 Charging current 30A max4 Equalizing charging voltage 29.2V5 Floating charge voltage 27.6V6 Overcharge protection 29.4V7 PV input voltage range 36-150VDC8 PV input power 1200W max.9 PV charging power 800W max.10 Conversion efficiency 96%max11 PV charging power 1 StringⅤ Display1 LED Display2 Remote WIFI APP supports Android and Iphone (through the APP, you can check the working parameters and setthe system working mode: such as off-grid mode, grid-tied mode) and other functionsⅥ Protection Functions7.1 IP Level IP217.2 ProtectionOvercharge protection,Over-discharge protection,Over-current protection,Short-circuit protection, Over-temperature protection, Anti-IslandingProtectionⅦ Environment9.1 The noise 60dB Max（1 meter）9.2 Operating Temperature '0℃ to 50℃9.3 Humidity 5% to 95% Relative Humidity(Non-condensing)9.4 Operating Temperature '-10℃ to 60℃9.5 AltitudeBelow 1,500 meters above sea level. When the altitude is higher than 1500m, derating is required.Ⅷ SIZE1 Products size（L*W*H） L794*W420*H160mm2 Packing size（L*W*H） L853*W483*H253mm

•
•

•
•

Details:

• Warranty
  2 Years Warranty

Features:

1.

2. With 80A MPPT Solar Charge Controller Inside
3. Can Work With or Without Battery
4. Wide PV Input Range 120-450V
5. Efficiently Work With or Without Battery
6. With Anti Dust Kit
7. With Touch Button on the LCD Display

Technical Parameters.Model no. ESS-1.2KVA Storage information1 Normal Battery Voltage(Vdc) 25.6VDC2 Low Battery Warning Voltage SOC 20%3 Low Battery Protection Voltage SOC 20%4 Over Protection Voltage 29.2VDC5 Battery type LiFePO46 Cell brand CATL7 The capacity of each cell 3.2V 20AH8 Cell QTY 24PCS9 Normal Capacity (25℃ 0.2C) (WH) 1536wh10 Cells Cycle life (25℃, 0.2C, 80%SOH）≥2000cycles&25℃≥1500cycles&45℃Ⅱ Grid input Parameters1 Max. Power Feed to Grid 600W Max.2 AC Input Current 0-40A(Adjustable)3 AC Input Range 90-265VAC4 AC Input Frequency Range 50HZ ±3HZ5 THDI 3%6 Rectification efficiency 90% Max.Ⅲ Off Grid Output Parameters1 Continuous AC Output Power 1000W2 Output peak power（W）If the load ≧1100W, shut off after 1 minute;If the load ≧2000W, shut off after 200ms3 Ac Output Voltage 220VAC4 Power factor 1.05 Output waveform Pure sine wave6 Output frequency 50HZ7 Inverter Efficiency90% max.Ⅳ Solar charge controller data1 Type MPPT2 Rated battery voltage 25.2V173 Charging current 30A max4 Equalizing charging voltage 29.2V5 Floating charge voltage 27.6V6 Overcharge protection 29.4V7 PV input voltage range 36-150VDC8 PV input power 1200W max.9 PV charging power 800W max.10 Conversion efficiency 96%max11 PV charging power 1 StringⅤ Display1 LED Display2 Remote WIFI APP supports Android and Iphone (through the APP, you can check the working parameters and setthe system working mode: such as off-grid mode, grid-tied mode) and other functionsⅥ Protection Functions7.1 IP Level IP217.2 ProtectionOvercharge protection,Over-discharge protection,Over-current protection,Short-circuit protection, Over-temperature protection, Anti-IslandingProtectionⅦ Environment9.1 The noise 60dB Max（1 meter）9.2 Operating Temperature '0℃ to 50℃9.3 Humidity 5% to 95% Relative Humidity(Non-condensing)9.4 Operating Temperature '-10℃ to 60℃9.5 AltitudeBelow 1,500 meters above sea level. When the altitude is higher than 1500m, derating is required.Ⅷ SIZE1 Products size（L*W*H） L794*W420*H160mm2 Packing size（L*W*H） L853*W483*H253mm

Sako Off-Grid Hybrid MPPT Solar Inverter 1.2KVA 12v

price

22,500 BDT26,500 BDTSave 4,000 BDT

sold_units 1

1

add_to_cart

buy_now

Details:

• Warranty
  2 Years Warranty

Features:

1.

2. With 80A MPPT Solar Charge Controller Inside
3. Can Work With or Without Battery
4. Wide PV Input Range 120-450V
5. Efficiently Work With or Without Battery
6. With Anti Dust Kit
7. With Touch Button on the LCD Display

Technical Parameters.Model no. ESS-1.2KVA Storage information1 Normal Battery Voltage(Vdc) 25.6VDC2 Low Battery Warning Voltage SOC 20%3 Low Battery Protection Voltage SOC 20%4 Over Protection Voltage 29.2VDC5 Battery type LiFePO46 Cell brand CATL7 The capacity of each cell 3.2V 20AH8 Cell QTY 24PCS9 Normal Capacity (25℃ 0.2C) (WH) 1536wh10 Cells Cycle life (25℃, 0.2C, 80%SOH）≥2000cycles&25℃≥1500cycles&45℃Ⅱ Grid input Parameters1 Max. Power Feed to Grid 600W Max.2 AC Input Current 0-40A(Adjustable)3 AC Input Range 90-265VAC4 AC Input Frequency Range 50HZ ±3HZ5 THDI 3%6 Rectification efficiency 90% Max.Ⅲ Off Grid Output Parameters1 Continuous AC Output Power 1000W2 Output peak power（W）If the load ≧1100W, shut off after 1 minute;If the load ≧2000W, shut off after 200ms3 Ac Output Voltage 220VAC4 Power factor 1.05 Output waveform Pure sine wave6 Output frequency 50HZ7 Inverter Efficiency90% max.Ⅳ Solar charge controller data1 Type MPPT2 Rated battery voltage 25.2V173 Charging current 30A max4 Equalizing charging voltage 29.2V5 Floating charge voltage 27.6V6 Overcharge protection 29.4V7 PV input voltage range 36-150VDC8 PV input power 1200W max.9 PV charging power 800W max.10 Conversion efficiency 96%max11 PV charging power 1 StringⅤ Display1 LED Display2 Remote WIFI APP supports Android and Iphone (through the APP, you can check the working parameters and setthe system working mode: such as off-grid mode, grid-tied mode) and other functionsⅥ Protection Functions7.1 IP Level IP217.2 ProtectionOvercharge protection,Over-discharge protection,Over-current protection,Short-circuit protection, Over-temperature protection, Anti-IslandingProtectionⅦ Environment9.1 The noise 60dB Max（1 meter）9.2 Operating Temperature '0℃ to 50℃9.3 Humidity 5% to 95% Relative Humidity(Non-condensing)9.4 Operating Temperature '-10℃ to 60℃9.5 AltitudeBelow 1,500 meters above sea level. When the altitude is higher than 1500m, derating is required.Ⅷ SIZE1 Products size（L*W*H） L794*W420*H160mm2 Packing size（L*W*H） L853*W483*H253mm
