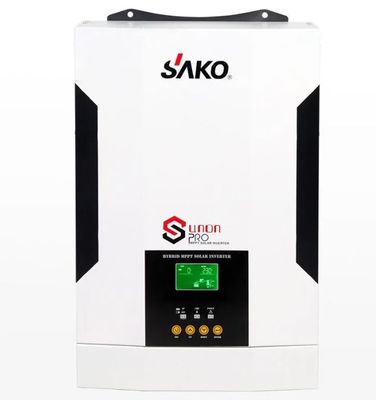

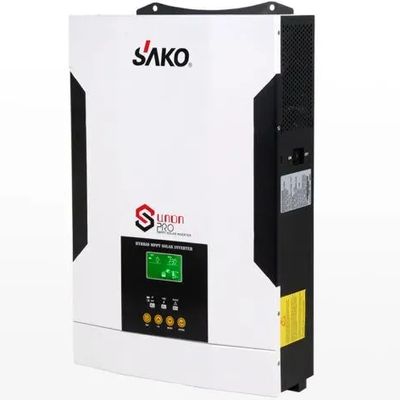

SAKO SUNON PRO Hybrid 5.5kw MPPT Solar Inverter 48v
বিঃ দ্রঃ - ক্যাশ অন ডেলিভারির ক্ষেত্রে কুরিয়ার খরচ অগ্রিম পেমেন্ট করতে হবে.Full SpecificationRated Power: 5500VA / 5500WFeaturesPure sine wave outputCold start functionBuilt-in MPPT solar charge controllerMAX PV Array Open Circuit Voltage: 450VSupport USB, RS485 monitoring function WIFI remote monitoring (optional)InputVoltage: 230VACSelectable Voltage RangeUPS: 170-280VACAppliances: 90-280VACFrequency Range; 50Hz/60Hz(Auto sensing)OutputAC Voltage Regulation (Batt. Model): 230VAC±5%Surge Power: 11000VAEfficiency(Peak): 90%Transfer Time:UPS: 10MSAppliances: 20MSPure sine wave Wave formNo load current: 1.1ABatteryBattery voltage: 48VDCLow battery alarming voltage: 44.0VDCLow battery cut off protection voltage: 42.0VDCLow battery recovery voltage: 46.0VDCFloating Charge Voltage: 54VDCOvercharge Protection: 64VDCMPPT Solar Charger & AC ChargerMaximum PV Array Power: 6000WMPPT Range at Operation Voltage: 120-450VDCMaximum PV Array Open Circuit Voltage: 500DCNumber of MPPT trackers/Max output current: 100AMaximum AC Charge Current: 60AMaximum Charge Current: 100AMaximum Efficiency: 98%Best Panel configuration300Wp x 9pcs x 36V (2970Wp) x 2ParallelPhysicalDimension D x W x H: 481 x 313 x 117mmNet Weight: 10.5 KgGross Weight: 11.7 KgOperating EnvironmentHumidity: 5 to 95% Relative Humidity (Non-condensing)Operation Temperature: -10°C-50°CDescriptionThe Sako Sunon Pro series is a versatile inverter or charger that combines the functions of a solar charger and a battery charger to generate electricity. This hybrid solar inverter is ideal for power supply in homes, small offices, shops and other places. It has Maximum Power Point Tracking (MPPT) technology to generate electricity by extracting the maximum available power from the PV module. It has a smart LCD display which can set working mode, charge current, charge voltage etc. Also provides protection against overload, short circuit and deep discharge.
SAKO SUNON PRO Hybrid 5.5kw MPPT Solar Inverter 48v
price
55,500 BDT70,500 BDTSave 15,000 BDT
sold_units 1
1
Details:
- Warranty2 Years Warranty
বিঃ দ্রঃ - ক্যাশ অন ডেলিভারির ক্ষেত্রে কুরিয়ার খরচ অগ্রিম পেমেন্ট করতে হবে.
Full Specification
Rated Power: 5500VA / 5500W
- Features
- Pure sine wave output
- Cold start function
- Built-in MPPT solar charge controller
- MAX PV Array Open Circuit Voltage: 450V
- Support USB, RS485 monitoring function WIFI remote monitoring (optional)
- Input
- Voltage: 230VAC
- Selectable Voltage Range
- UPS: 170-280VAC
- Appliances: 90-280VAC
- Frequency Range; 50Hz/60Hz(Auto sensing)
- Output
- AC Voltage Regulation (Batt. Model): 230VAC±5%
- Surge Power: 11000VA
- Efficiency(Peak): 90%
- Transfer Time:
- UPS: 10MS
- Appliances: 20MS
- Pure sine wave Wave form
- No load current: 1.1A
- BatteryBattery voltage: 48VDC
- Low battery alarming voltage: 44.0VDC
- Low battery cut off protection voltage: 42.0VDC
- Low battery recovery voltage: 46.0VDC
- Floating Charge Voltage: 54VDC
- Overcharge Protection: 64VDC
- MPPT Solar Charger & AC ChargerMaximum PV Array Power: 6000W
- MPPT Range at Operation Voltage: 120-450VDC
- Maximum PV Array Open Circuit Voltage: 500DC
- Number of MPPT trackers/Max output current: 100A
- Maximum AC Charge Current: 60A
- Maximum Charge Current: 100A
- Maximum Efficiency: 98%
- Best Panel configuration300Wp x 9pcs x 36V (2970Wp) x 2Parallel
- Physical
- Dimension D x W x H: 481 x 313 x 117mm
- Net Weight: 10.5 Kg
- Gross Weight: 11.7 Kg
- Operating Environment
- Humidity: 5 to 95% Relative Humidity (Non-condensing)
- Operation Temperature: -10°C-50°C
Description
The Sako Sunon Pro series is a versatile inverter or charger that combines the functions of a solar charger and a battery charger to generate electricity. This hybrid solar inverter is ideal for power supply in homes, small offices, shops and other places. It has Maximum Power Point Tracking (MPPT) technology to generate electricity by extracting the maximum available power from the PV module. It has a smart LCD display which can set working mode, charge current, charge voltage etc. Also provides protection against overload, short circuit and deep discharge.IPS HAT BAZAR BD
