Full Specification

1. Rated Power: 3500W
2. Voltage: 230V, AC
3. Selectable Voltage Range
4. 170-280V, AC (Personal Computers)
5. 90-280V, AC (Home Appliances)
6. Frequency Range: 50Hz/60Hz (Auto sensing)
7. Surge Power: 7000VA
8. Transfer Time
9. 10 ms (Personal Computers)
10. 20 ms (Home Appliances)
11. Output Port: Single output
12. Waveform: Pure sine wave
13. Battery Voltage: 24V, DC
14. Works without Battery: Yes
15. Maximum PV Array Power: 4000W
16. Maximum Charging Current: 120A
17. Maximum Efficiency: 98%

MPPT Solar Charger & AC Charger

1. Maximum PV Array Power: 4000W
2. MPPT Range at Operation Voltage: 60-450VDC
3. Maximum PV Array Open Circuit Voltage: 120DC
4. Number of MPPT trackers/Max output current: 120A
5. Maximum AC Charge Current: 60A
6. Maximum Charge Current: 100A
7. Maximum Efficiency: 98%

Description

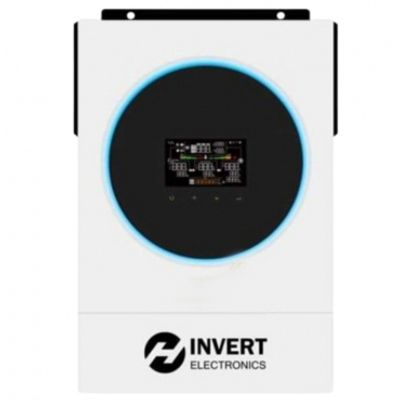

This Hinvert HMK-Plus is an off-grid solar Inverter used in solar power systems to convert the direct current generated by solar panels into alternating current that can be used to power home appliances. This machine offers a power capacity of 3.5 kilowatts. Plus, it includes MPPT technology which stands for Maximum Power Point Tracking to optimize the power output from the solar panels.
