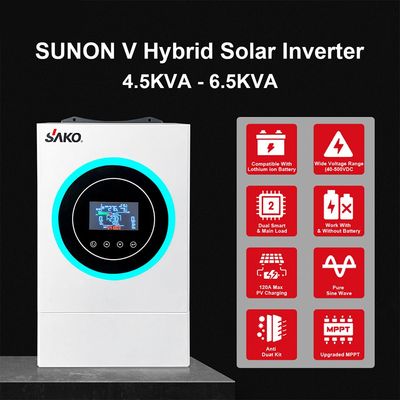

SAKO SUNON V Hybrid 4.5kw MPPT Solar Inverter 24v Inbill wifi
Model Name: SUNON V 4.5KVA- 100A-MPPTCapacity: 4.5KVA/4200WOperating Temp Range: -10~50C°SUNON V 4.5K MPPT Solar InverterWith 100A MPPT Solar Charge Controller Built-inWith High PV input Voltage Range(120-500VDC) Efficiently Work With or Without BatteryWith WIFI Function OptionalSUNON-V4.5K Support BMSUser-friendly LCD operationProduct Features✮Select the work mode as grid-tied or off grid.✮LED display working mode switch.✮SOC of energy storage capacity displayed via RGB lights.✮overload, over temperature, short circuit protection.✮Remote WIFI function, can check lots of the system’s data such as working status, solar power generation, powerconsumption, metering power, battery SOC, battery cycle times, voltage of each battery cells through the mobilephone APP. At the same time user can turn on or turn off through the mobile phone APP, whether it is in timingmode or smart mode.✮It can be used for timing mains charging and timing grid-tied or discharge.Other ModeTransfer Time :10MS(UPS) 20MS(Appliances)Wave Form : Pure Shine WaveAC charge current : 60/100AIt can work with or without batteryAuto restart while AC is recoveringImportant note: directly guaranteed by Waked Electric Company, provided that the serial number is obtainedPV inputNominal Operating Voltage: 320VdcMaximum input Current: 27AIsc PV: 27AV Max Solar PV Volt: 500VdcPV Input Voltage Range: 60-450VdcFull Load MPPT Range: 280-430VdcMax PV input Power: 5000WAC InputMax, AC input Voltage: 300VacAC input Voltage Range: 90-280VacNominal Operating Voltage: 230VacMaximum input Current: 28.7ANominal Operating Frequency: 50/60HzAC OutputAC Voltage Range: 90-280VacNominal Operating Voltage: 230VacNominal Output Current: 18.3ANominal Operating Frequency: 50/60HzMaximum Power: 4200WPower Factor: 1.0Battery Battery voltage Range: 21-32VdcMaximum Battery Discharging Current: 200AMaximum Battery Charging Current: 120ALow battery alarming voltage: 22.0VDCLow battery cut off protection voltage: 21VDCLow battery recovery voltage: 23.0VDCFloating Charge Voltage: 27VDCOvercharge Protection: 32VDCMPPT Solar Charger & AC Charger Maximum PV Array Power: 5000WMPPT Range at Operation Voltage: 120-450VDCMaximum PV Array Open Circuit Voltage: 500DCNumber of MPPT trackers/Max output current: 100AMaximum AC Charge Current: 60AMaximum Charge Current: 100AMaximum Efficiency: 1.0Best Panel configuration300Wp x 9pcs x 36V (2700Wp) x 2ParallelPhysicalDimension D x W x H: 481 x 313 x 117mmNet Weight: 9.8 KgGross Weight: 11 KgOperating EnvironmentHumidity: 5 to 95% Relative Humidity (Non-condensing)Operation Temperature: -10°C-50°C
SAKO SUNON V Hybrid 4.5kw MPPT Solar Inverter 24v Inbill wifi
price
Details:
- Warranty1 Years Warranty
Model Name: SUNON V 4.5KVA- 100A-MPPT
Capacity: 4.5KVA/4200W
Operating Temp Range: -10~50C°
SUNON V 4.5K MPPT Solar Inverter
With 100A MPPT Solar Charge Controller Built-in
With High PV input Voltage Range(120-500VDC)
Efficiently Work With or Without Battery
With WIFI Function Optional
SUNON-V4.5K Support BMS
User-friendly LCD operation
Product Features
✮Select the work mode as grid-tied or off grid.
✮LED display working mode switch.
✮SOC of energy storage capacity displayed via RGB lights.
✮overload, over temperature, short circuit protection.
✮Remote WIFI function, can check lots of the system’s data such as working status, solar power generation, power
consumption, metering power, battery SOC, battery cycle times, voltage of each battery cells through the mobile
phone APP. At the same time user can turn on or turn off through the mobile phone APP, whether it is in timing
mode or smart mode.
✮It can be used for timing mains charging and timing grid-tied or discharge.
Other Mode
Transfer Time :10MS(UPS) 20MS(Appliances)
Wave Form : Pure Shine Wave
AC charge current : 60/100A
It can work with or without battery
Auto restart while AC is recovering
Important note: directly guaranteed by Waked Electric Company, provided that the serial number is obtained
PV input
Nominal Operating Voltage: 320Vdc
Maximum input Current: 27A
Isc PV: 27A
V Max Solar PV Volt: 500Vdc
PV Input Voltage Range: 60-450Vdc
Full Load MPPT Range: 280-430Vdc
Max PV input Power: 5000W
AC Input
Max, AC input Voltage: 300Vac
AC input Voltage Range: 90-280Vac
Nominal Operating Voltage: 230Vac
Maximum input Current: 28.7A
Nominal Operating Frequency: 50/60Hz
AC Output
AC Voltage Range: 90-280Vac
Nominal Operating Voltage: 230Vac
Nominal Output Current: 18.3A
Nominal Operating Frequency: 50/60Hz
Maximum Power: 4200W
Power Factor: 1.0
Battery
Battery voltage Range: 21-32Vdc
Maximum Battery Discharging Current: 200A
Maximum Battery Charging Current: 120A
Low battery alarming voltage: 22.0VDC
Low battery cut off protection voltage: 21VDC
Low battery recovery voltage: 23.0VDC
Floating Charge Voltage: 27VDC
Overcharge Protection: 32VDC
MPPT Solar Charger & AC Charger
Maximum PV Array Power: 5000W
MPPT Range at Operation Voltage: 120-450VDC
Maximum PV Array Open Circuit Voltage: 500DC
Number of MPPT trackers/Max output current: 100A
Maximum AC Charge Current: 60A
Maximum Charge Current: 100A
Maximum Efficiency: 1.0
Best Panel configuration
300Wp x 9pcs x 36V (2700Wp) x 2Parallel
Physical
Dimension D x W x H: 481 x 313 x 117mm
Net Weight: 9.8 Kg
Gross Weight: 11 Kg
Operating Environment
Humidity: 5 to 95% Relative Humidity (Non-condensing)
Operation Temperature: -10°C-50°C
