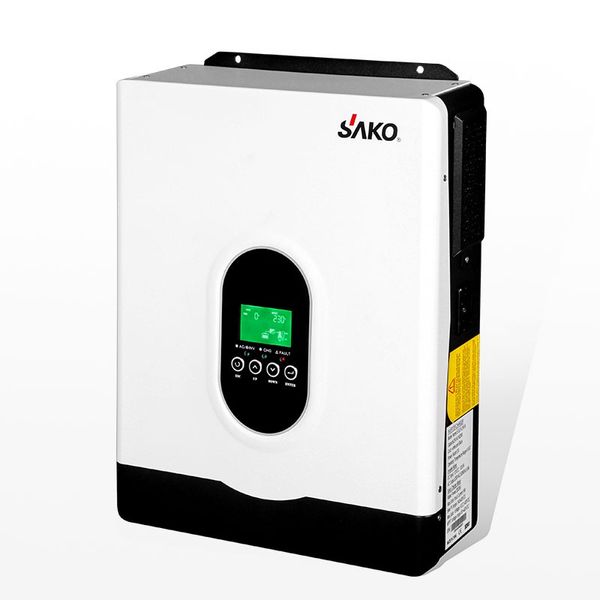

Sako 3KVA 24v Hybrid Solar Inverter

Model SUNON E series :E-Sun 3KVAThe rated power : 3000VA/2700WINPUT Voltage : 230VACSelectable Voltage Range : 170-280VAC (UPS),90-280VAC (Appliances)Frequnecy Range : 50Hz/60Hz (Auto sensing)OUTPUT AC Voltage Regulation (Batt. Model) : 230VAC ± 5%Surge Power : 6000VAPower factor : 0.9Efficiency(Peak) :> 90%Transfer Time : 10ms (UPS), 20ms (Appliances)Wave form : Pure sine waveNo load current :1.0ABattery voltage : 24VDCLow battery alarming voltage : 22.0VDCLow battery cut off protection voltage : 21VDCLow battery recovery voltage : 23.0VDCFloating Charge Voltage : 27VDCOvercharge Protection : 32VDCMPPT SOLAR CHARGER & AC CHARGERMaximum PV Array Power : 3200WMPPT Range Operation Vol : 30-430VDCMaximum PV Array Open Circuit Vol. :450VDCNumber of MPPT trackers / Max output current : 80AMaxmum AC Charge Curren : 60AMaxmum Efficience : 0.98BEST PANEL CONFIGUTATIONMaximum PV Array Power "3000WBest Panel configuration : 550W 2-5 PCS in 1 SProducts Dimension, D*W*H(mm) : 350mm*270mm*98mmPacking size,: D*W*H(mm) 413mm*350mm*173mmOperation Temperature :-10℃-50℃

•

•

Model SUNON E series :E-Sun 3KVA

The rated power : 3000VA/2700W

INPUT Voltage : 230VAC

Selectable Voltage Range : 170-280VAC (UPS),90-280VAC (Appliances)

Frequnecy Range : 50Hz/60Hz (Auto sensing)

OUTPUT AC Voltage Regulation (Batt. Model) : 230VAC ± 5%

Surge Power : 6000VA

Power factor : 0.9

Efficiency(Peak) :> 90%

Transfer Time : 10ms (UPS), 20ms (Appliances)

Wave form : Pure sine wave

No load current :1.0A

Battery voltage : 24VDC

Low battery alarming voltage : 22.0VDC

Low battery cut off protection voltage : 21VDC

Low battery recovery voltage : 23.0VDC

Floating Charge Voltage : 27VDC

Overcharge Protection : 32VDC

MPPT SOLAR CHARGER & AC CHARGER

Maximum PV Array Power : 3200W

MPPT Range Operation Vol : 30-430VDC

Maximum PV Array Open Circuit Vol. :450VDC

Number of MPPT trackers / Max output current : 80A

Maxmum AC Charge Curren : 60A

Maxmum Efficience : 0.98

BEST PANEL CONFIGUTATION

Maximum PV Array Power "3000W

Best Panel configuration : 550W 2-5 PCS in 1 S

Products Dimension, D*W*H(mm) : 350mm*270mm*98mm

Packing size,: D*W*H(mm) 413mm*350mm*173mm

Operation Temperature :-10℃-50℃

Sako 3KVA 24v Hybrid Solar Inverter

price

35,000 BDT37,000 BDTSave 2,000 BDT

1

add_to_cart

buy_now

Model SUNON E series :E-Sun 3KVA

The rated power : 3000VA/2700W

INPUT Voltage : 230VAC

Selectable Voltage Range : 170-280VAC (UPS),90-280VAC (Appliances)

Frequnecy Range : 50Hz/60Hz (Auto sensing)

OUTPUT AC Voltage Regulation (Batt. Model) : 230VAC ± 5%

Surge Power : 6000VA

Power factor : 0.9

Efficiency(Peak) :> 90%

Transfer Time : 10ms (UPS), 20ms (Appliances)

Wave form : Pure sine wave

No load current :1.0A

Battery voltage : 24VDC

Low battery alarming voltage : 22.0VDC

Low battery cut off protection voltage : 21VDC

Low battery recovery voltage : 23.0VDC

Floating Charge Voltage : 27VDC

Overcharge Protection : 32VDC

MPPT SOLAR CHARGER & AC CHARGER

Maximum PV Array Power : 3200W

MPPT Range Operation Vol : 30-430VDC

Maximum PV Array Open Circuit Vol. :450VDC

Number of MPPT trackers / Max output current : 80A

Maxmum AC Charge Curren : 60A

Maxmum Efficience : 0.98

BEST PANEL CONFIGUTATION

Maximum PV Array Power "3000W

Best Panel configuration : 550W 2-5 PCS in 1 S

Products Dimension, D*W*H(mm) : 350mm*270mm*98mm

Packing size,: D*W*H(mm) 413mm*350mm*173mm

Operation Temperature :-10℃-50℃
