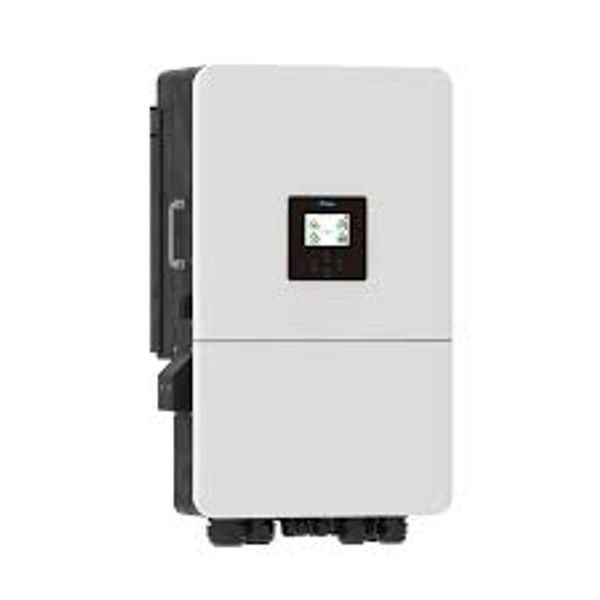

Deye 20KW 48V Three Phase Hybrid Inverter

Battery Input DataBattery Type: Lead-acid or Lithium-ionBattery Voltage Range (V): 40v-60vMax. Charging Current (A): 350ACharging Strategy forLi-ion Battery: Self-adaption to BMSNumber of Battery Input: 1PV String Input DataMax. PV Access Power (W): 40000w Max. DC Input Power (W): 32000wMax. DC Input Voltage (V): 800vStart-up Voltage (V): 160vMPPT Voltage Range (V): 160v-650vRated DC Input Voltage (V): 550v Max. Operating PV Input Current (A): 36A+36A Max. Input Short-Circuit Current (A): 54A +54A No.of String PerMPPT Tracker: 2/2+2AC Input/Output DataRated AC Input/Output Active Power (W): 20000WMax. AC Input/Output Apparent Power (VA): 22000VARated AC Input/Output Current (A): 30.4/29Max. Continuous AC Passthrough (grid to load) (A): 70APeak Power (off-grid) (W): 2 times of rated power, 10sPower Factor Adjustment Range: 0.8 leadingRated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1UnRated Input/Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65Grid Connection Form: 3L+N+PEEfficiencyMax. Efficiency: 97.6%Euro Efficiency: 97.0%MPPTEfficiency: >99%InterfaceCommunication Interface: RS485/RS232/CANMonitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)General DataOperating Temperature Range (℃): -40 to +60℃, >45℃ DeratingPermissible Ambient Humidity: 0-100%Permissible Altitude: 3000mNoise: ≤60Ingress Protection(IP) Rating: IP 65Inverter Topology: Non-IsolatedOver Voltage Category: OVC II(DC), OVC III(AC)Cabinet Size (WxHxD mm): 456×750×268.5 (Excluding Connectors and Brackets)Weight (kg): 51.9Type of Cooling: Intelligent Air CoolingWarranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty PolicyGrid Regulation: IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,OVE-Richtlinie R25, G99,VDE-AR-N 4105afety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

•
•
•
•
•
•

•
•
•
•
•
•

Details:

• Warranty
  5 Years Warranty

Battery Input Data

1. Battery Type: Lead-acid or Lithium-ion
2. Battery Voltage Range (V): 40v-60v
3. Max. Charging Current (A): 350A
4. Charging Strategy forLi-ion Battery: Self-adaption to BMS
5. Number of Battery Input: 1

PV String Input Data

1. Max. PV Access Power (W): 40000w
2. Max. DC Input Power (W): 32000w
3. Max. DC Input Voltage (V): 800v
4. Start-up Voltage (V): 160v
5. MPPT Voltage Range (V): 160v-650v
6. Rated DC Input Voltage (V): 550v
7. Max. Operating PV Input Current (A): 36A+36A
8. Max. Input Short-Circuit Current (A): 54A +54A
9. No.of String PerMPPT Tracker: 2/2+2

AC Input/Output Data

1. Rated AC Input/Output Active Power (W): 20000W
2. Max. AC Input/Output Apparent Power (VA): 22000VA
3. Rated AC Input/Output Current (A): 30.4/29
4. Max. Continuous AC Passthrough (grid to load) (A): 70A
5. Peak Power (off-grid) (W): 2 times of rated power, 10s
6. Power Factor Adjustment Range: 0.8 leading
7. Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
8. Rated Input/Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
9. Grid Connection Form: 3L+N+PE

Efficiency

1. Max. Efficiency: 97.6%
2. Euro Efficiency: 97.0%
3. MPPTEfficiency: >99%

Interface

1. Communication Interface: RS485/RS232/CAN
2. Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

1. Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
2. Permissible Ambient Humidity: 0-100%
3. Permissible Altitude: 3000m
4. Noise: ≤60
5. Ingress Protection(IP) Rating: IP 65
6. Inverter Topology: Non-Isolated
7. Over Voltage Category: OVC II(DC), OVC III(AC)
8. Cabinet Size (WxHxD mm): 456×750×268.5 (Excluding Connectors and Brackets)
9. Weight (kg): 51.9
10. Type of Cooling: Intelligent Air Cooling
11. Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
12. Grid Regulation: IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
13. OVE-Richtlinie R25, G99,VDE-AR-N 4105
14. afety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Deye 20KW 48V Three Phase Hybrid Inverter

price

685,000 BDT1ps750,000 BDTSave 65,000 BDT

Secure
Checkout

Satisfaction
Guaranteed

Privacy
Protected

add_to_cart

buy_now

Details:

• Warranty
  5 Years Warranty

Battery Input Data

1. Battery Type: Lead-acid or Lithium-ion
2. Battery Voltage Range (V): 40v-60v
3. Max. Charging Current (A): 350A
4. Charging Strategy forLi-ion Battery: Self-adaption to BMS
5. Number of Battery Input: 1

PV String Input Data

1. Max. PV Access Power (W): 40000w
2. Max. DC Input Power (W): 32000w
3. Max. DC Input Voltage (V): 800v
4. Start-up Voltage (V): 160v
5. MPPT Voltage Range (V): 160v-650v
6. Rated DC Input Voltage (V): 550v
7. Max. Operating PV Input Current (A): 36A+36A
8. Max. Input Short-Circuit Current (A): 54A +54A
9. No.of String PerMPPT Tracker: 2/2+2

AC Input/Output Data

1. Rated AC Input/Output Active Power (W): 20000W
2. Max. AC Input/Output Apparent Power (VA): 22000VA
3. Rated AC Input/Output Current (A): 30.4/29
4. Max. Continuous AC Passthrough (grid to load) (A): 70A
5. Peak Power (off-grid) (W): 2 times of rated power, 10s
6. Power Factor Adjustment Range: 0.8 leading
7. Rated Input/Output Voltage/Range (V): 220/380V, 230/400V 0.85Un-1.1Un
8. Rated Input/Output Grid Frequency/Range(Hz): 50/45-55, 60/55-65
9. Grid Connection Form: 3L+N+PE

Efficiency

1. Max. Efficiency: 97.6%
2. Euro Efficiency: 97.0%
3. MPPTEfficiency: >99%

Interface

1. Communication Interface: RS485/RS232/CAN
2. Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN(optional)

General Data

1. Operating Temperature Range (℃): -40 to +60℃, >45℃ Derating
2. Permissible Ambient Humidity: 0-100%
3. Permissible Altitude: 3000m
4. Noise: ≤60
5. Ingress Protection(IP) Rating: IP 65
6. Inverter Topology: Non-Isolated
7. Over Voltage Category: OVC II(DC), OVC III(AC)
8. Cabinet Size (WxHxD mm): 456×750×268.5 (Excluding Connectors and Brackets)
9. Weight (kg): 51.9
10. Type of Cooling: Intelligent Air Cooling
11. Warranty: 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
12. Grid Regulation: IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
13. OVE-Richtlinie R25, G99,VDE-AR-N 4105
14. afety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
