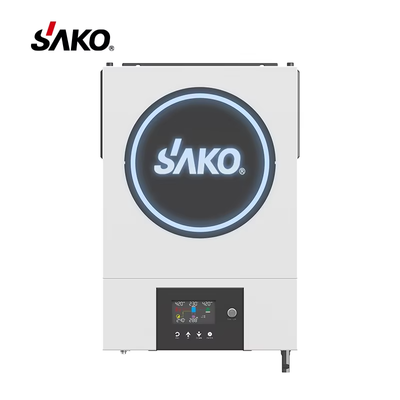

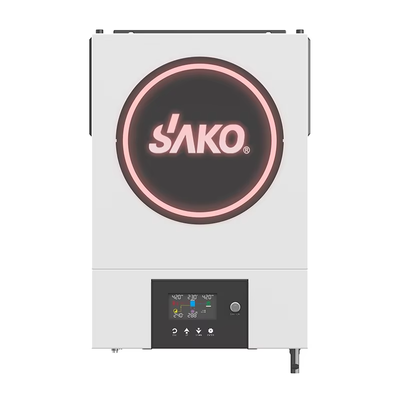

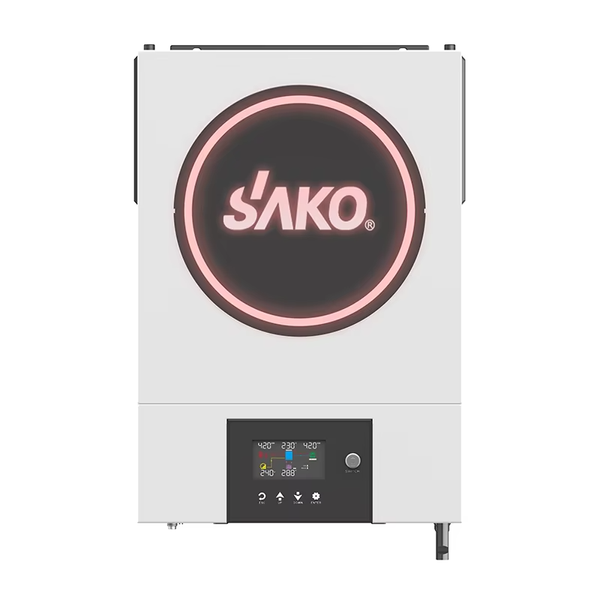

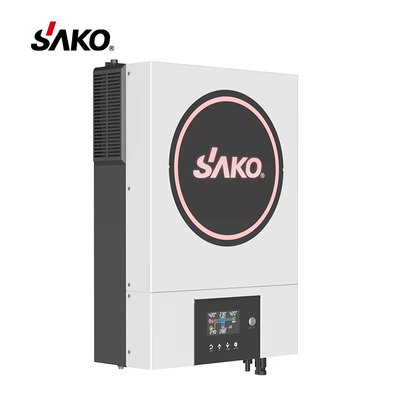

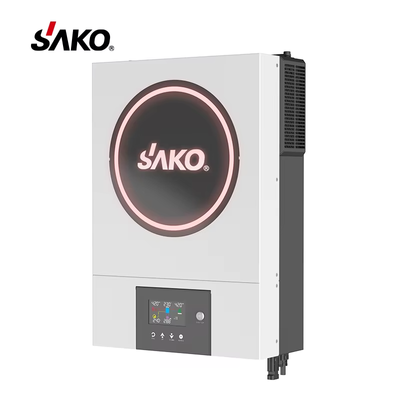

Sako SUNON-ULTRA 6.2kw 48V Hybrid Solar Inverter Can Work with or Without Battery

SUNON Ultra 6.2KW hybrid inverter, with built-in 120A MPPT solar charge controller inside, wide PV input range 90-500VDC, smart battery protection, compatible with lifepo4 battery, inverter can running with or without battery.SpecificationsAdditional informationRated Power 6200VA/6000WBattery Voltage 48 VDCFloating Charge Voltage 61 VDCOvercharge Protection 63 VDCVoltage 230 VACSelectable Voltage Range 170-280 VAC (For Personal Computers) (For Home Appliances)Frequency Range 50 Hz/60 Hz (Auto sensing)AC Voltage Regulation (Batt. Mode) 230 VAC ± 5%Surge Power 8400VAEfficiency (Peak) ~ 93%Transfer Time (For Personal Computers) ; 20 ms (For Home Appliances)WaveformPure Sine WaveSolar Charger TypeMPPTMaximum PV Array Power 6000WMPPT Range @ Operating Voltage170 ~ 450 VDCMaximum PV Array Open Circuit Voltage500 VDCMaxmum Solar Charge Current120 AMaximum AC Charge Current100 AMaximum Charge Current120 ADimension, D x W x H (mm)481 x 300 x 130Net Weight (kgs)13.0Communication InterfaceUSB/RS232/RS485(BMS)/Local WiFi/Dry-contactHumidity5% to 95% Relative Humidity(Non-condensing)Operating Temperature-10°C to 50°CStorage Temperature-15°C to 60°C

•
•
•
•

•
•
•
•

Details:

• Warranty
  2 Years

SUNON Ultra 6.2KW hybrid inverter, with built-in 120A MPPT solar charge controller inside, wide PV input range 90-500VDC, smart battery protection, compatible with lifepo4 battery, inverter can running with or without battery.

Specifications

Additional information

Rated Power	6200VA/6000W
Battery Voltage	48 VDC
Floating Charge Voltage	61 VDC
Overcharge Protection	63 VDC
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	8400VA
Efficiency (Peak)	~ 93%
Transfer Time	(For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
Solar Charger Type	MPPT
Maximum PV Array Power	6000W
MPPT Range @ Operating Voltage	170 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maxmum Solar Charge Current	120 A
Maximum AC Charge Current	100 A
Maximum Charge Current	120 A
Dimension, D x W x H (mm)	481 x 300 x 130
Net Weight (kgs)	13.0
Communication Interface	USB/RS232/RS485(BMS)/Local WiFi/Dry-contact
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Sako SUNON-ULTRA 6.2kw 48V Hybrid Solar Inverter Can Work with or Without Battery

price

55,500 BDT1ps65,500 BDTSave 10,000 BDT

Secure
Checkout

Satisfaction
Guaranteed

Privacy
Protected

1

add_to_cart

buy_now

Details:

• Warranty
  2 Years

SUNON Ultra 6.2KW hybrid inverter, with built-in 120A MPPT solar charge controller inside, wide PV input range 90-500VDC, smart battery protection, compatible with lifepo4 battery, inverter can running with or without battery.

Specifications

Additional information

Rated Power	6200VA/6000W
Battery Voltage	48 VDC
Floating Charge Voltage	61 VDC
Overcharge Protection	63 VDC
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	8400VA
Efficiency (Peak)	~ 93%
Transfer Time	(For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure Sine Wave
Solar Charger Type	MPPT
Maximum PV Array Power	6000W
MPPT Range @ Operating Voltage	170 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maxmum Solar Charge Current	120 A
Maximum AC Charge Current	100 A
Maximum Charge Current	120 A
Dimension, D x W x H (mm)	481 x 300 x 130
Net Weight (kgs)	13.0
Communication Interface	USB/RS232/RS485(BMS)/Local WiFi/Dry-contact
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
