Full Specification

1. Capacity: 1000VA
2. Output Load Capacity: 800 Watt 12V
3. Inbuilt Lithium-ion Battery Completed
4. Wave Form: Pure Sign Wave and microcontroller based
5. Input Voltage:100V AC–295V AC
6. Output Voltage: 220+
7. Intelligent battery management system and protect from short circuit, over load and over charging
8. User can see all parameter in LCD Big display
9. Frequency: 50/60 Hz, Single Face
10. • Solar Details
11. User selectable grid-charging enable or disable option
12. In-built heavy duty MPPT solar charge controller 40AH
13. Maximum Solar Use: 600Watt
14. MPPT Tracking Range: 17.5v-48Vdc
15. Maximum Solar Voc-55V
16. Best Open Circuit Voltage: 22Vdc
17. Best PV input Voltage: 18Vdc
18. In-built heavy MPPT Charge Controller 40AH
19. Solar panel connection is parallel
20. Solar and grid charging current sharing for maximum solar usage
21. User satiable priority solar-battery-grid or solar-grid-battery
22. Inbuilt cold start & soft start function available
23. Power saving with no load shut down
24. Generator compatible
25. Battery deep discharge & over charge protection
26. Usages: 5 Fans and 8/10 energy lights & 1 TV & wi-fi router & CCTV& & Computer, Alternate Use

Description

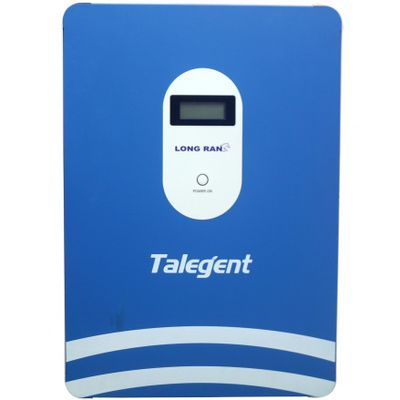

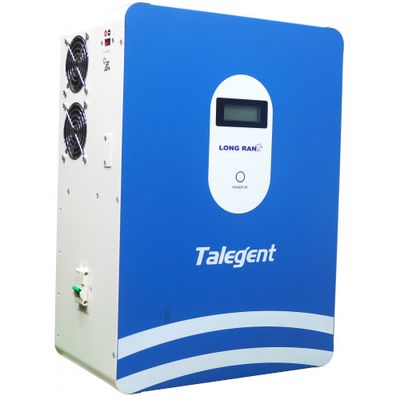

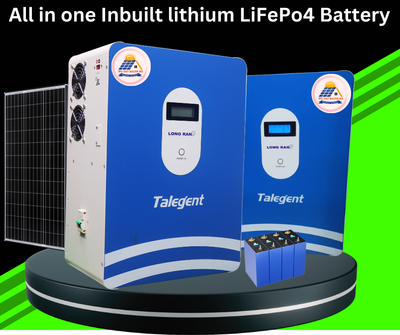

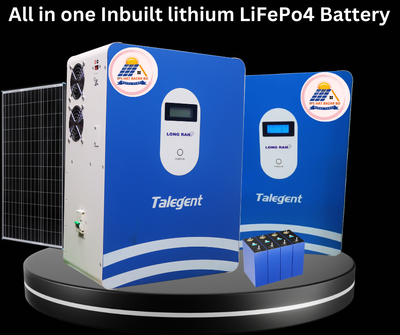

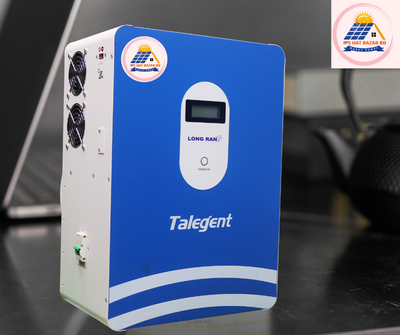

The Long Ran MPPT PCU-1450 is an all-in-one pure sine wave solar inverter with a capacity of 1050 VA and a rated power of 800 watts at 12V. It provides DSP pure sine wave technology and has overloading, overcharging, and short-circuit protection, And full charge cut protection, low voltage cut protection. Also it has inbuilt lithium ion (LiFePo4) battery 12V 200AH. This inverter has a silver transformer and an LCD & LED-dual big display.
